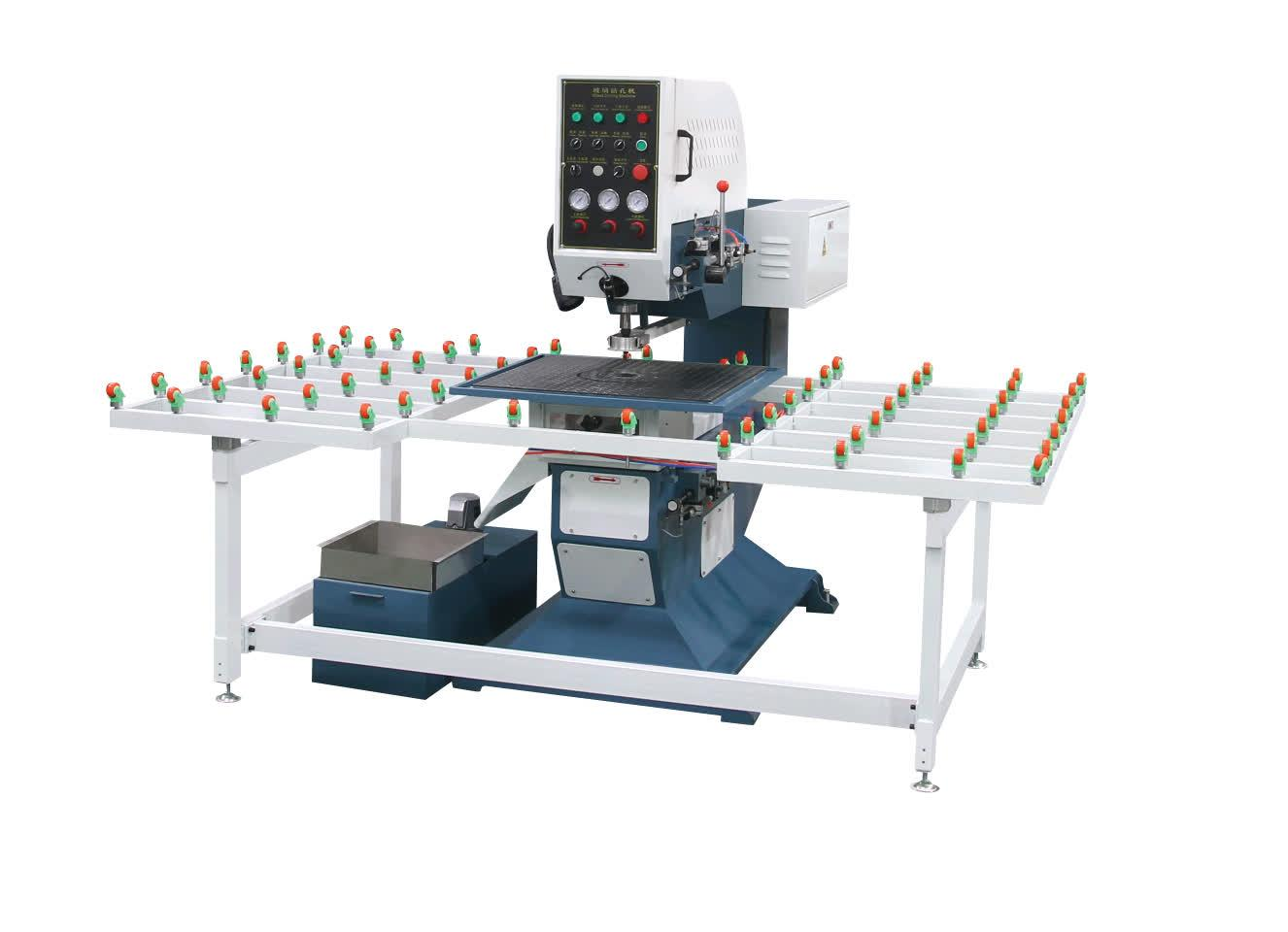

Glass drill machine

Product  Information

This drilling machine employs automated control and precision buffer technology, making it simple to operate and highly efficient. Hole positioning can be achieved through laser correction or batch fixed positioning. This simplifies operation and makes it particularly suitable for single-piece and batch fixed production. Control modes include inching, automatic, and continuous automatic to meet diverse production requirements.

Machine Data

Drilling diameter: Φ4-Φ80mm

Drilling glass thickness: 3-19mm

Depth to hole center distance: 1200mm

Voltage: 380V 50Hz (Customized voltage Available)

Total power: 3.15Kw

Table height: 850mm

Dimensions: 2500X2100X1700mm

Drill bit speed: 850r/min, 1400r/min, 3000r/min
