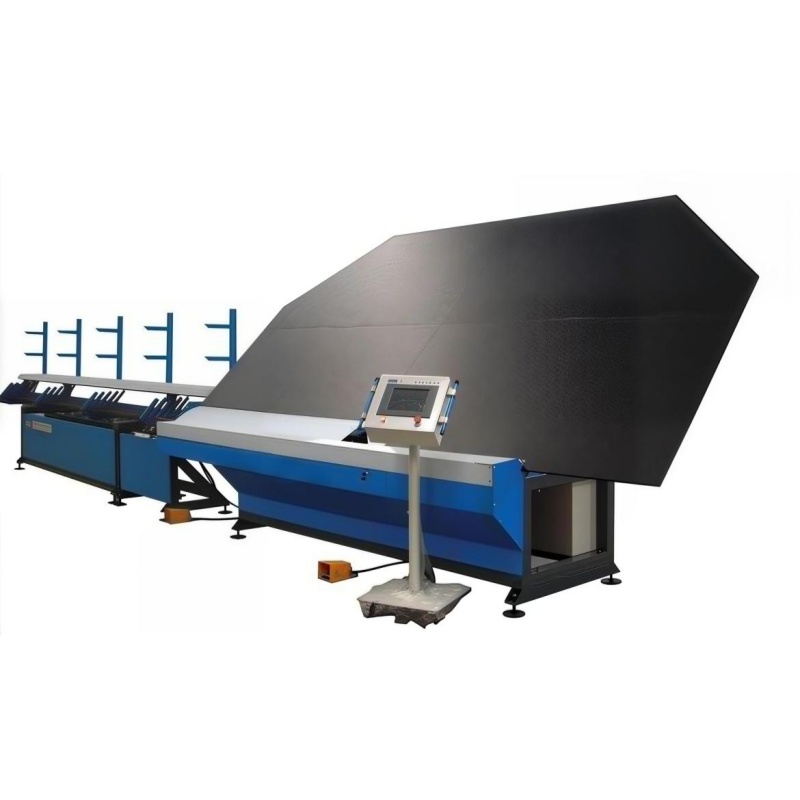

Aluminum spacer bending machine

Short Description:

The fully automatic Aluminum spacer bending machine is a high-efficiency processing equipment specifically designed for aluminum spacers in insulated glass. Through automation technology, it achieves precise bending, cutting, and joint avoidance of the aluminum spacers, replacing the traditional corner-insertion process and significantly improving the sealing performance and production efficiency of insulated glass. Its core advantage lies in solving the problem of air leakage at the corners of corner-insertion insulated glass, reducing the risk of seal failure through an integrated bending process, while meeting the needs of mass production.

Send email to us

Product Detail

Product Tags

Product Advantage

1, PLC control, touch screen simple operation.

2, Feeding system adopts CNC servo motor, bending angle uses CNC control system.

3, Four material storage slots for four dierent specifcations of spacers.

4, Bending and cutting automatically avoid the connection, the roundness, automatically cut after bending.

5, With manual operation model, easy to debug and repair.

6, Large box can achieve two box docking.

7, It can be folded into triangles, rectangles, regular pentagons, regular hexagons, arcs and other shapes.

Optional features: Barcode printing, scanning, Laser printing, Excel spreadsheet data import and production counting functions.

Product Data

Power supply	380V 50Hz
Total power	4.0kW
Aluminum bar specifcation	5.5~26.5mm
Min. Aluminium bar size	300×300mm
Max.Aluminium bar size	2500×2500mm
Bending angle error	±0.3°
Bending speed	<30s (1000×1000mm)
Air pressure	0.7MPa
